Brook Fighting Board Cable

The Brook Fighting Board Cable is the simplest way to connect a Brook or GP-2040 PCB to your fightstick.

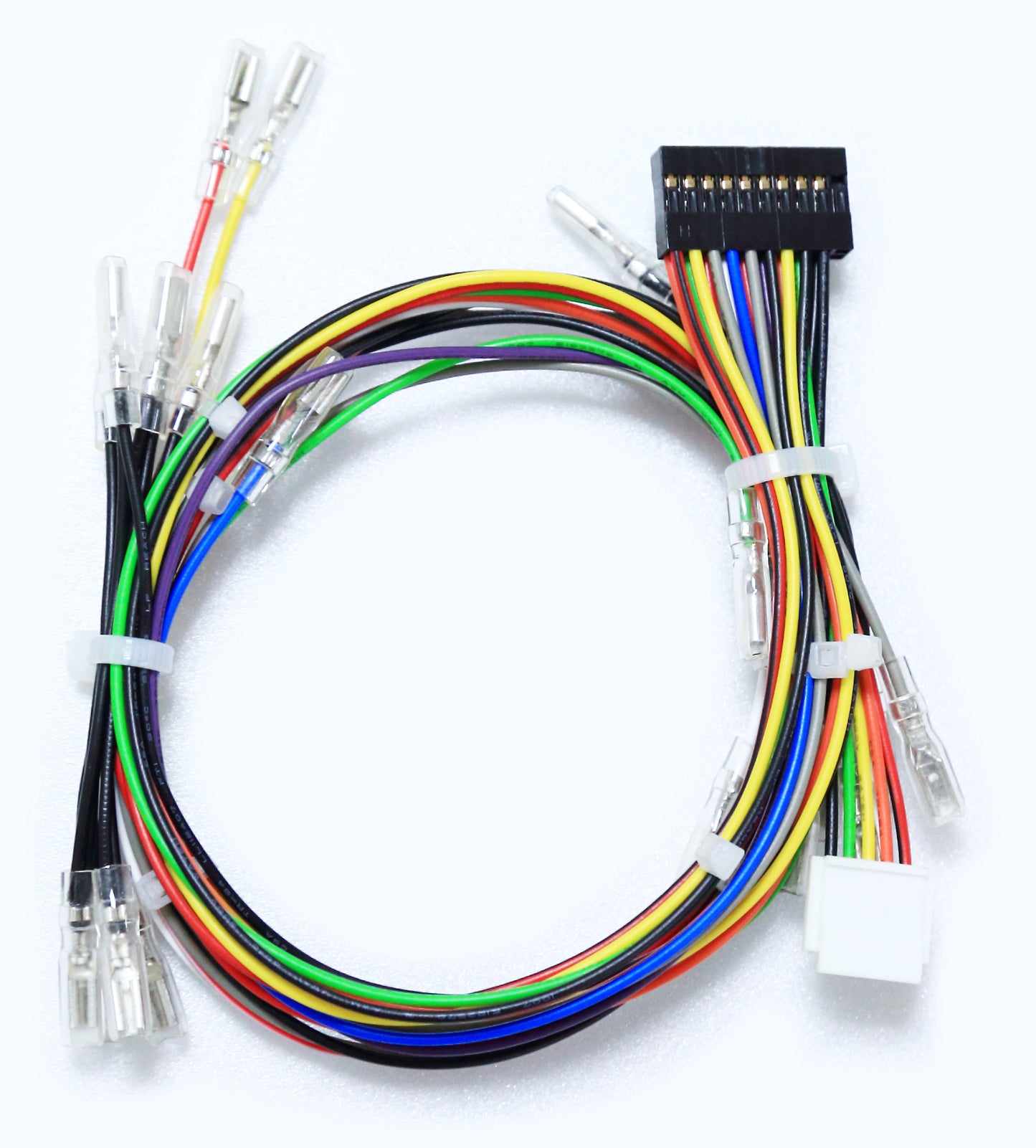

Simply plug the 20 pin connector onto the PCB and then connect up you buttons using the spade terminals and the joystick lever with the Sanwa style JST connector. If you are using a leverless stick, use the HitBox Cable in conjunction with this one to connect your direction buttons to the JST connector.

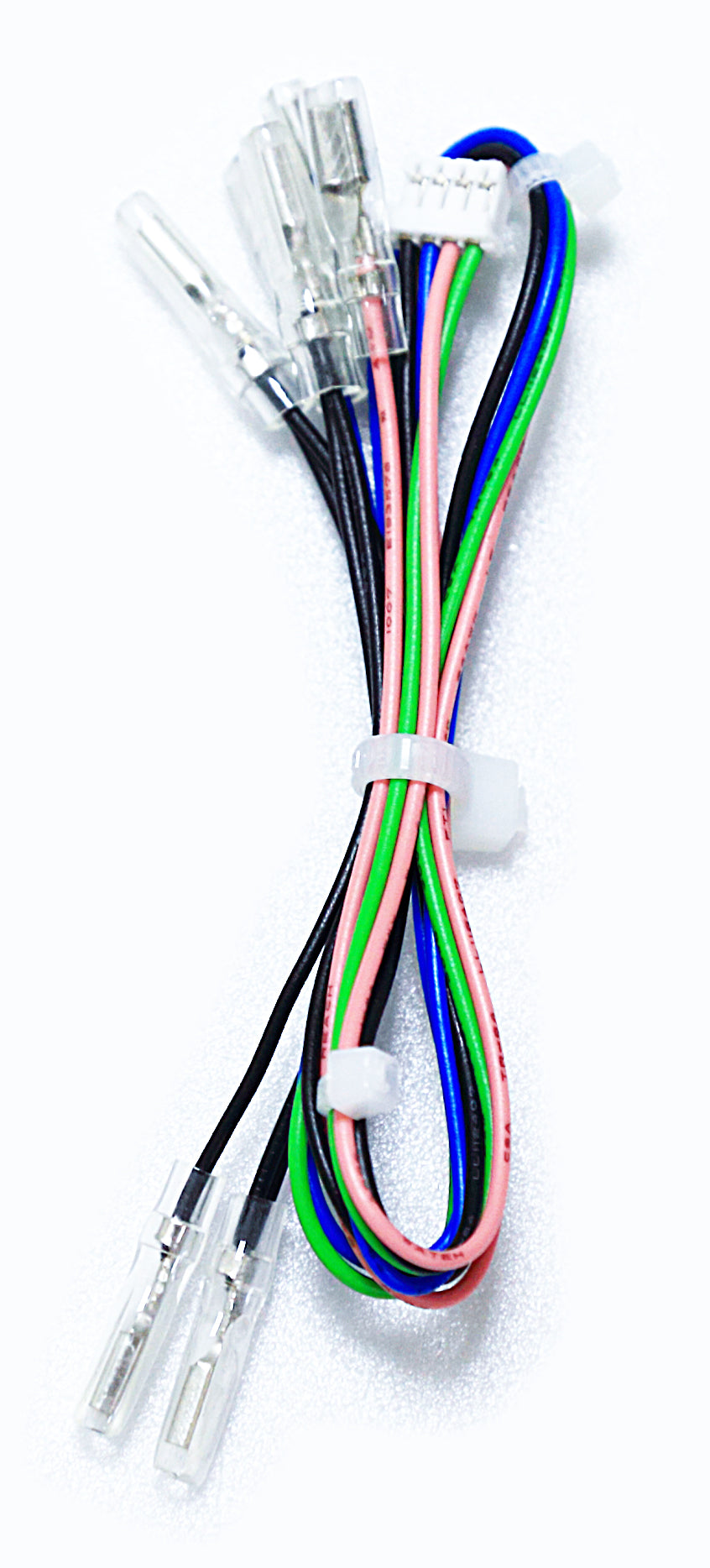

The included 4 pin connector also allows you to add L3/R3 and Share buttons.
