Description

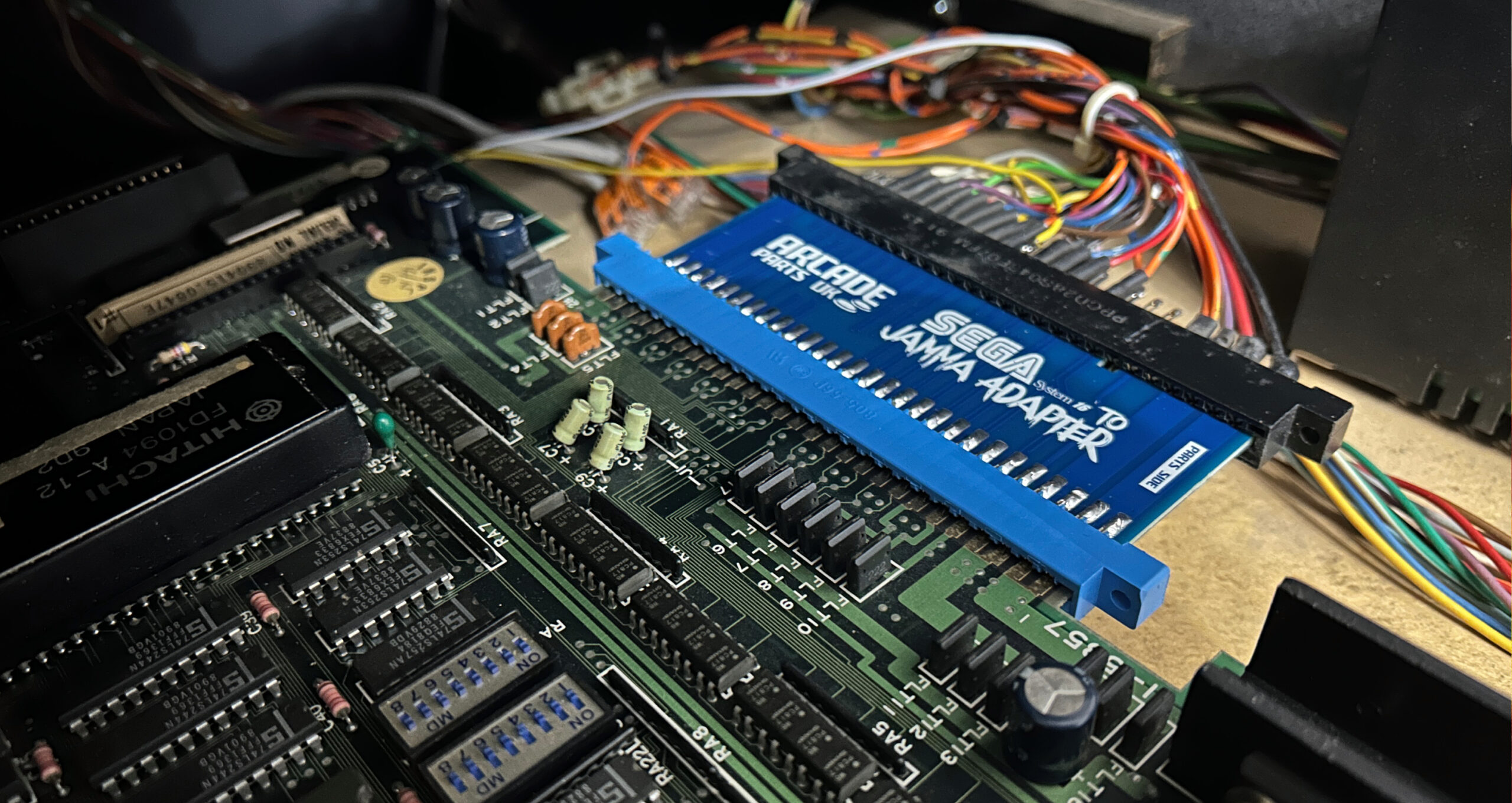

Before the Jamma standard was introduced for arcade PCBs, every company had their own pinouts for the PCB edge connectors. So if you now want to use the PCBs in a Jamma cab or with a SuperGun you need to use an adapter to correct the pinout.

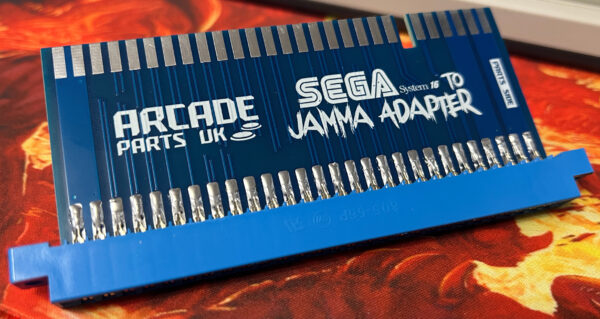

APUK were asked by a customer whether we could supply adapters. After finding that they were not readily available in the UK, we decided to design and manufacture our own. They have been designed using multiple sources for the pinouts and with thicker traces for power etc.
Please check our technical datasheet for the adapter to confirm the pinout and compatibility with your PCB before ordering.
**PLEASE NOTE** ARCADE PARTS UK DO NOT ACCEPT ANY LIABILITY FOR DAMAGE CAUSED TO CUSTOMERS EQUIPMENT AS A RESULT OF USING THESE ADAPTERS. PLEASE CHECK THE PINOUT ON YOUR PCB TO CONFIRM COMPATIBILITY.
